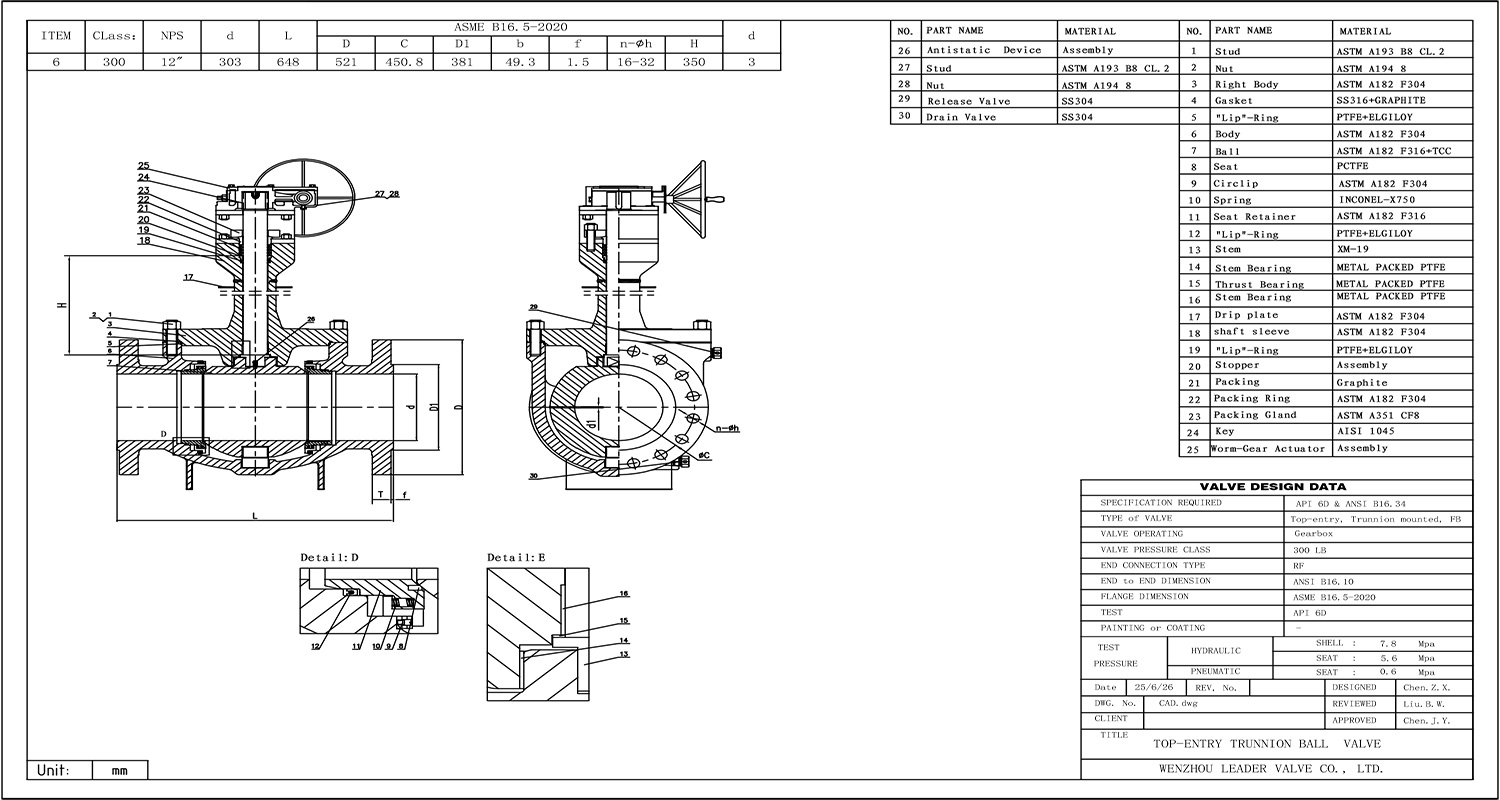

Cryogenic Top-entry Trunnion mounted Ball Valve
-
Share:
Available Temperature range：-196℃~-29℃；
Size: DN50~DN600, 2 inch-24inch;
Rating pressure: PN16~PN100,ANSI 150lb ~ 600lb;
Body Materials: Low-temperature Carbon steel, AusteniticStainless Steel;
Trim: A350 LF2+ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Description
Design standard
Basic standard: GOST 28343-1989,API 608,API 6D,ASME B16.34, BS 6364;
Flange connection dimesion: GOST 12815-80,ASME B16.5;
Face-to-face dimension: GOST 3706-93,ASME B16.10，Manufacturer standard；
Pressure-Temperature rating: ASME B16.34;
PressureTest: GOST 356-2016,API 598, API 6D;
Crygoenic test：BS 6364;
Product range
Available Temperature range：-196℃~-29℃；
Size: DN50~DN600, 2 inch-24inch;
Rating pressure: PN16~PN100,ANSI 150lb ~ 600lb;
Body Materials: Low-temperature Carbon steel, AusteniticStainless Steel;
Trim: A350 LF2+ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Feature:
With extended stem and drip-plate design，with pressure balance hole at the ball;
Trunnion mounted, Top-entry, Fire-safe design, anit-blow out stem, Seat deisgn can be DBB or DIB-2 design；
Metal seated design and soft seated design are both available；
Available seat insert：RPTFE，PCTFE etc.;
Application:
LNG Pipeline, Ethylene projects etc.
