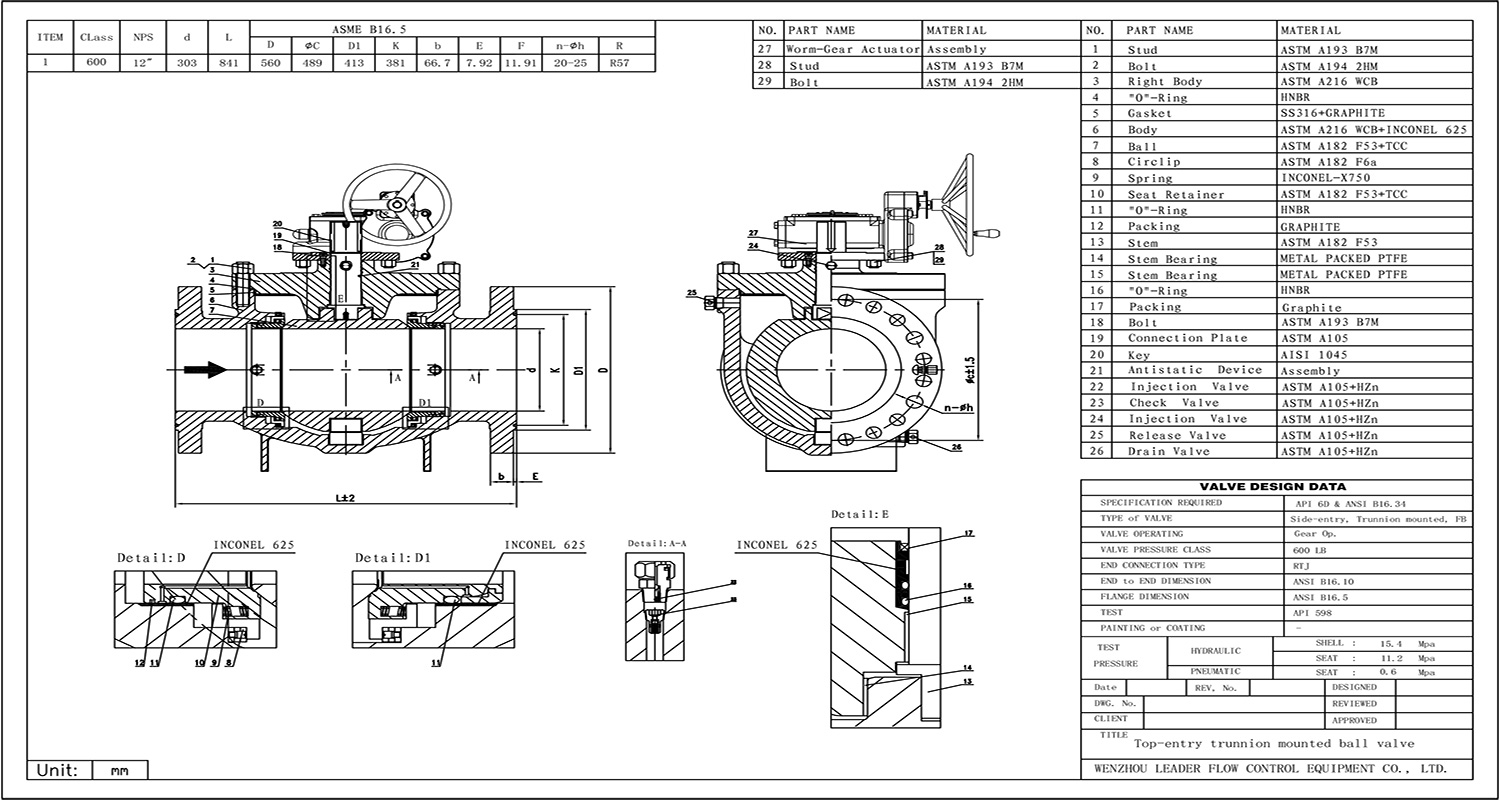

Top-entry Trunnion mounted Ball Valve
-
Share:
Size: DN50~DN1200, 2 inch-36inch;
Rating pressure: PN16~PN250,ANSI 150lb ~ 1500lb;
Body Materials: Carbon Steel,Low-temperature Carbon steel,Stainless Steel, Forged DuplexStainlessSteel;
Trim: A105+ENP, A350 LF2+ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Description
Design standard
Basic standard: GOST 28343-1989,API 608,API 6D,ASME B16.34;
Flange connection dimesion: GOST 12815-80,ASME B16.5, ASME B16.47 Series A/B;
Face-to-face dimension: GOST 3706-93,ASME B16.10，Manufacturer standard；
Pressure-Temperature rating: ASME B16.34;
PressureTest: GOST 356-2016,API 598, API 6D;
Product range
Size: DN50~DN1200, 2 inch-36inch;
Rating pressure: PN16~PN250,ANSI 150lb ~ 1500lb;
Body Materials: Carbon Steel,Low-temperature Carbon steel,Stainless Steel, Forged DuplexStainlessSteel;
Trim: A105+ENP, A350 LF2+ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Feature:
Trunnion mounted, Top-entry, Fire-safe design, anit-blow out stem, Seat deisgn can be DBB design；
Metal seated design and soft seated design are both available；
Available seat insert：RPTFE，Devlon, Nylon, PEEK, PCTFE etc.;
With design of extended stem for cryogenic service（with temperature below -29℃）；
Application:
Refinery, Petrochemical,Oil and gas pipeline,Power plant, General Industry etc.
