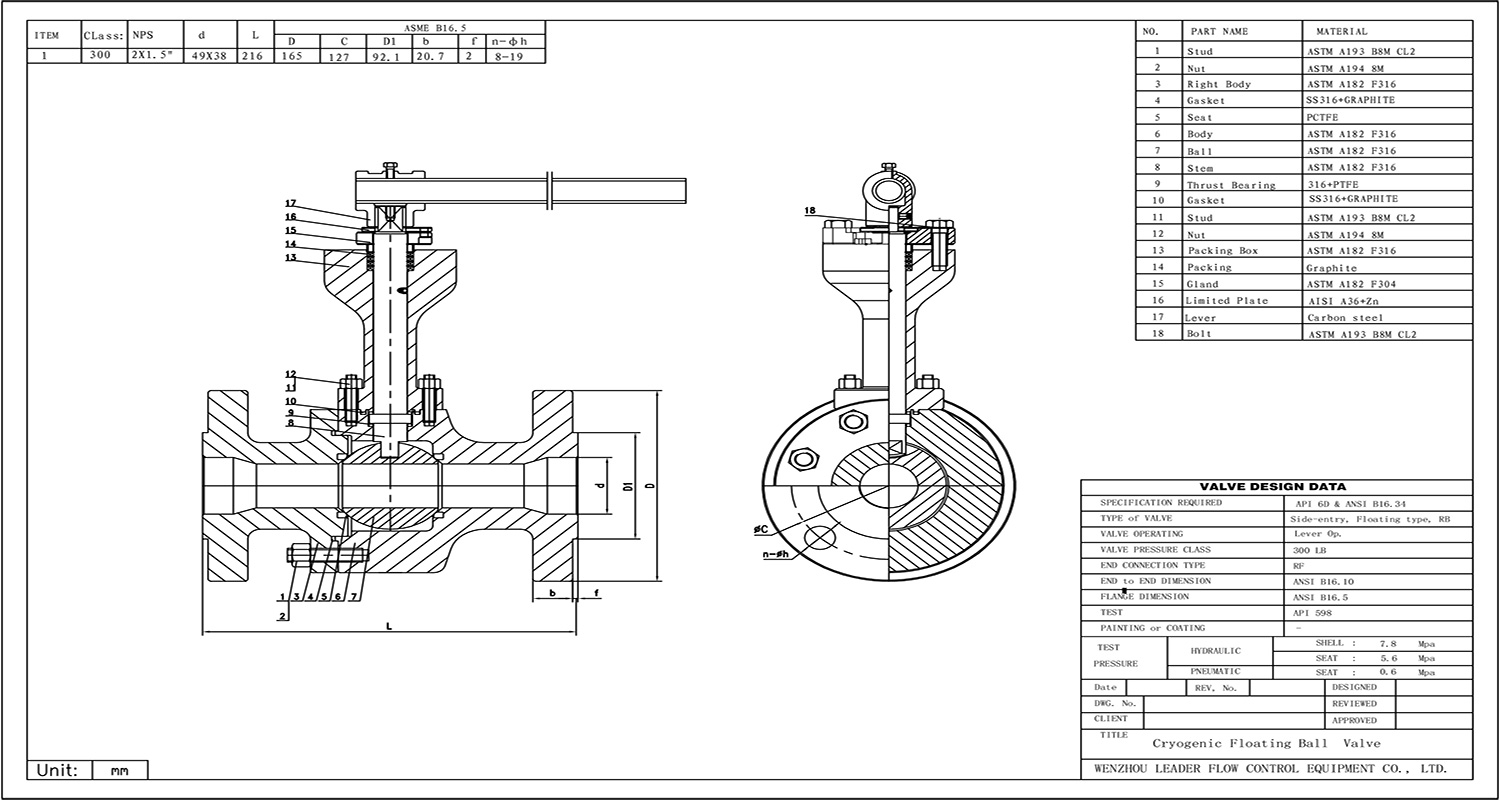

CRYOGENIC FLOATING BALL VALVE

Available temperature range：-196℃~ -29℃；

Size: DN15~DN250,1/2 inch-10inch;

Rating pressure: PN16~PN100,ANSI 150lb ~ 600lb;

Body Materials: Low Temperature Carbon Steel,AusteniticStainless Steel；

Trim: A182 F316, A182 F304 etc.

Seat：PCTFE or RPTFE;

Operation: Lever Or Wrench Operated, Gearbox etc.

PrevCAST STEEL FLOATING BALL VALVE(CAST)

NextForged Steel Floating Ball Valve

Description

Design standard

Basic standard: GOST 28343-1989,API 608, ASME B16.34, BS 6364;

Flange connection dimesion: GOST 12815-80,ASME B16.5;

Face-to-face dimension: GOST 3706-93,ASME B16.10,

Pressure-Temperature rating: ASME B16.34;

PressureTest: GOST 356-2016,API 598, API 6D;

Cryogenic test standard：BS 6364;

Product range

Available temperature range：-196℃~ -29℃；

Size: DN15~DN250,1/2 inch-10inch;

Rating pressure: PN16~PN100,ANSI 150lb ~ 600lb;

Body Materials: Low Temperature Carbon Steel,AusteniticStainless Steel；

Trim: A182 F316, A182 F304 etc.

Seat：PCTFE or RPTFE;

Operation: Lever Or Wrench Operated, Gearbox etc.

Feature:

With extended stem and drip-plate design, with pressure balance hole at the ball, Splited body, 2-Piece or 3-piece type, Fire-safe design, anit-blow out stem;

Application:

LNG pipeline，Ethylene project etc.
