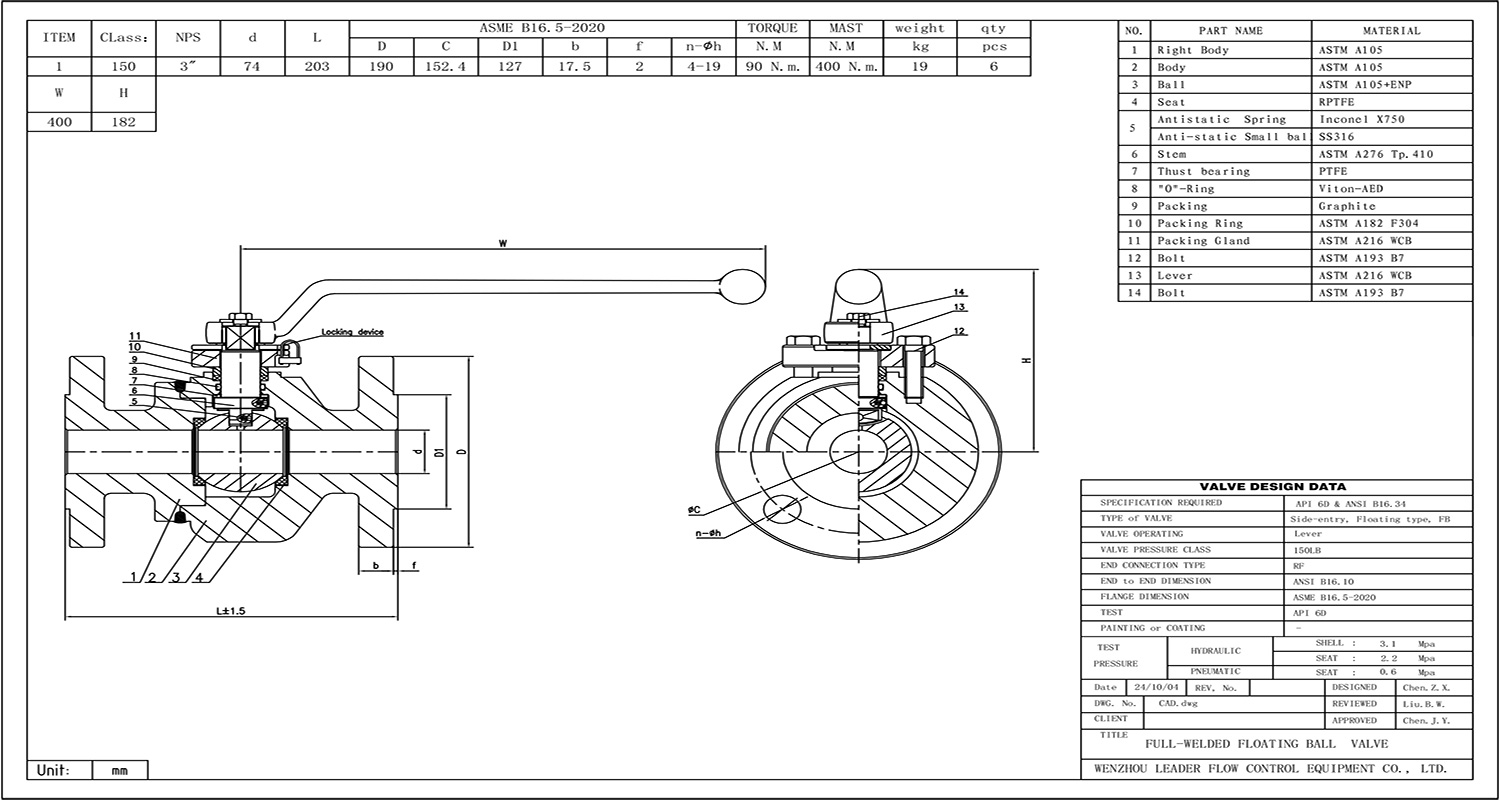

Fully welded Floating Ball Valve
-
Share:
Size: DN15~DN250,1/2 inch-10inch;
Rating pressure: PN16~PN100,ANSI 150lb ~ 600lb;
Body Materials: Forged Carbon Steel, Forged Stainless Steel, Forged Alloy Steel, Forged DuplexStainlessSteel;
Trim: ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Description
Design standard
Basic standard: GOST 28343-1989,API 608, ASME B16.34;
Flange connection dimesion: GOST 12815-80,ASME B16.5;
Face-to-face dimension: GOST 3706-93,ASME B16.10,
Pressure-Temperature rating: ASME B16.34;
PressureTest: GOST 356-2016,API 598, API 6D;
Product range
Size: DN15~DN250,1/2 inch-10inch;
Rating pressure: PN16~PN100,ANSI 150lb ~ 600lb;
Body Materials: Forged Carbon Steel, Forged Stainless Steel, Forged Alloy Steel, Forged DuplexStainlessSteel;
Trim: ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Feature:
Fully welded, 1-piece type, floating type ball, Fire-safe design, anit-blow out stem;
With design of extended stem for Buried pipeline installation;
Application:
Natural gas pipeline etc.
