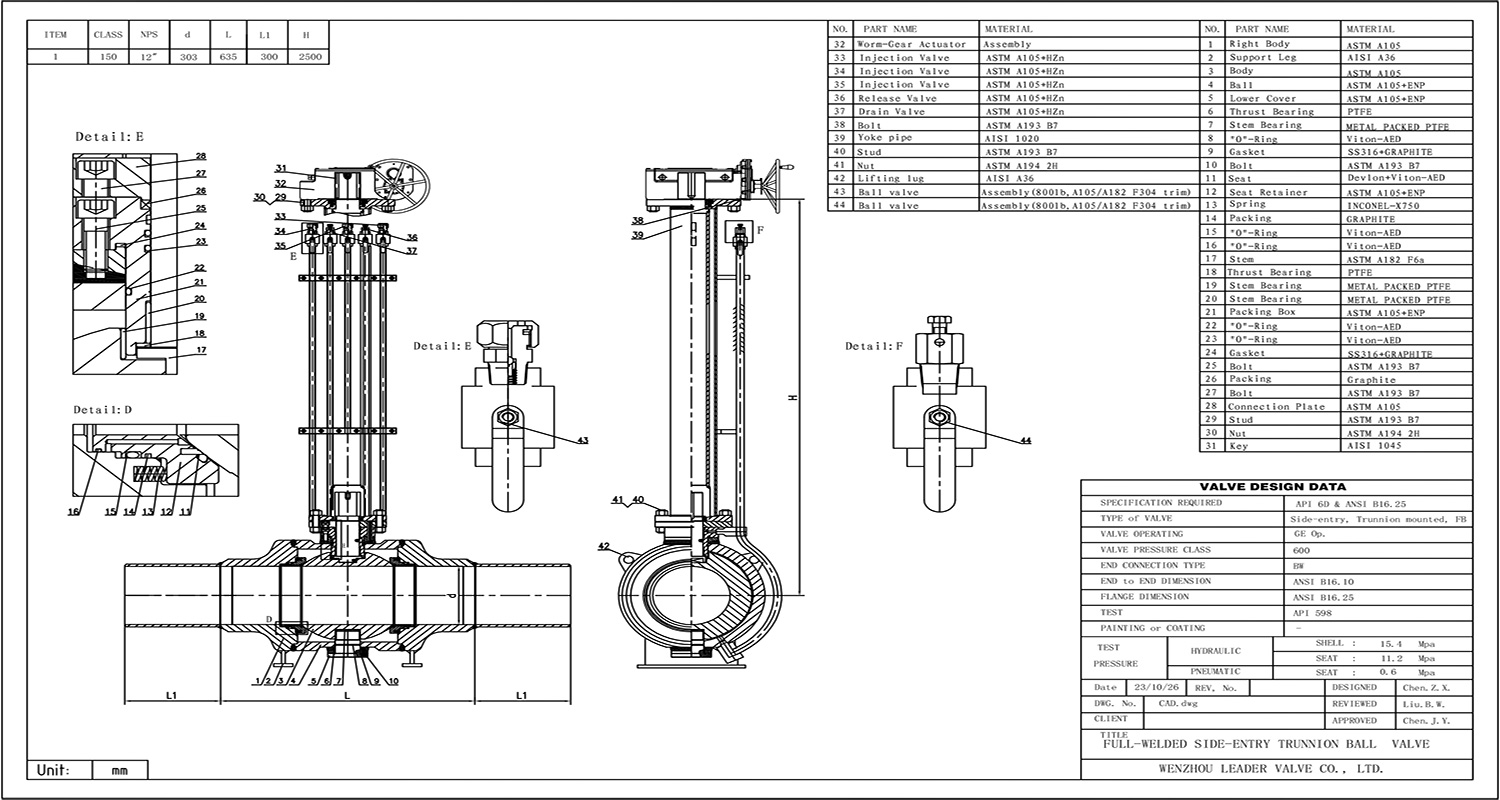

Full-welded Trunnion mounted Ball Valve
-
Share:
Size: DN50~DN1200, 2 inch-48inch;
Rating pressure: PN16~PN250,ANSI 150lb ~ 1500lb;
Body Materials: Carbon Steel,Low-temperature Carbon steel,Stainless Steel, Forged DuplexStainlessSteel;
Trim: A105+ENP, A350 LF2+ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Description
Design standard
Basic standard: GOST 9544-2015,GOST 28343-1989,API 608,API 6D,ASME B16.34;
Flange connection dimesion: GOST 12815-80,ASME B16.5, ASME B16.47 Series A/B;
Face-to-face dimension: GOST 3326-86,ASME B16.10,
Pressure-Temperature rating: ASME B16.34;
PressureTest: GOST 356-2016,API 598, API 6D;
Product range
Size: DN50~DN1200, 2 inch-48inch;
Rating pressure: PN16~PN250,ANSI 150lb ~ 1500lb;
Body Materials: Carbon Steel,Low-temperature Carbon steel,Stainless Steel, Forged DuplexStainlessSteel;
Trim: A105+ENP, A350 LF2+ENP, Stainless steel(SS304, SS316 etc.), etc.
Operation: Lever Or Wrench Operated, Gearbox etc.
Feature:
Full-welded, 1-piece type, Trunnion mounted, Fire-safe design, anit-blow out stem, Seat deisgn can be DBB, DIB-1, DIB-2 design；
Metal seated design and soft seated design are both available；
Available seat insert：RPTFE，Devlon, Nylon, PEEK etc.;
Extended stem for buried installation；
Application:
Gas pipeline, heating system pipeline etc.
Send Inquiry
Please feel free to contact with us at sales@leadervalve.com.cn or filling up an enquiry form instructed at the bottom, You will get an effective response within 24 hours from Our sales representative. Thanks for your valued time with interest!
